Industrial heating blankets digital 120°C

An industrial heating blanket/cuff heats surfaces and solids in an energy efficient and controllable way. Heating blankets are used, among others, in the marine industry for heating and curing GRP-hulls, aviation industry for heating and curing composite material, in windmill industry for repairing and production of rotor blades and for curing epoxy.

IHPs heating blankets are available in standard range and customized manufactured according to customer specifications. This model has a surface layer of silicone impregnated fabric that is easy to handle and clean. Heating blankets can be mounted side by side to cover a bigger area and is available for both inside and outside use.

The heating blankets are supplied as standard with a digital controller, adjustable between 0 and 120°C, which also contains extra functionality such as timer and ramping function.

Note that the heating blanket may not overlap itself.

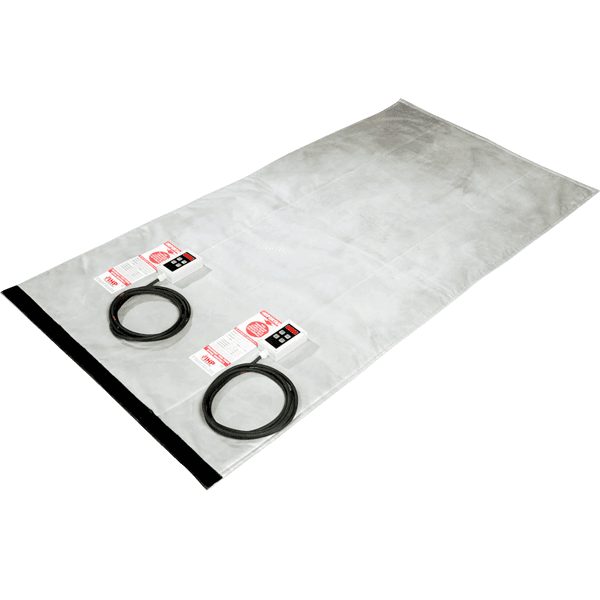

Heating blanket industrial
Industrial heating blanket 120Heating manchett industrial

Technical specification

Surface layer of silicone impregnated fabric
Sewn in glass fiber insulation about 6mm
Sewn in heating cable with Teflon treatment
Supply 230V or 110V (adjusted supply and power optional)
Digital controller 0-120°C with timer- and ramp function
Adjustable buckles and Velcro optional
Three meter supply cable
Protective earth

Standard range

Article nummerDimensionPowerSupply
261-6060-1600 x 600mm430W230V
261-10050-11000 x 500mm450W230V
261-100100-11000 x 1000mm900W230V
261-12080-11200 x 800mm930W230V
261-130130-11300 x 1300mm1420W230V
261-20050-12000 x 500mm900W230V
261-200100-12000 x 1000mm1800W230V
261-30050-13000 x 500mm1400W230V
261-6060-2600 x 600mm430W110V
261-10050-21000 x 500mm540W110V
261-100100-21000 x 1000mm1230W110V
261-130130-21300 x 1300mm1380W110V
261-20050-22000 x 500mm1040W110V

Other related products

You may also be interested in

Control cabinet PID

IHPs smallest control cabinet is a “stand alone” system that fits a variety of heating applications where the need is one heating zone and one sensor. In our PID controller there is plenty of intelligence that comes in handy when needed for even heating, ramp functionality, maximum adjustable temperature, program steps with different set points or only temperature control that is CE marked and approved.

We supply the control cabinets in three standard versions and you simply select the cabinets according to the type of sensor that fits your process. IHP can also offer some popular options such as quick plug between heater and control cabinet and help program the control cabinet with the parameters that are important in your process.

The control cabinet can advantageously be used in conjunction with all IHPs heaters that need less than 16Ampere.
