Silicone drum heaters 120°C

Drum heaters made with silicone rubber are the ideal solution for heating substances that are stored in steel drums. Drum heaters are mounted on the outside of the drum and heats for example water, fats, butter, sugar, glucose, chocolate, oils, diesel, lubricant oil, and other industrial liquids and substances indirectly.

This kind of drum heater has a relatively high surface load, is flexible and easy to mount by simple spring fixing. An analogue thermostat with adjustable working range 0-120°C is located on the drum heater. We also offer alternative thermostats with adjustable working range 0-90°C and 0-180°C.

IHP offers drum heaters for all sizes of drums and we have a standard range for drum sizes 25, 50, 105 and 200 liters. We can also offer a standard silicone drum heater IP65 for drum size 200 liters with working range up to 200°C.

Drum heating

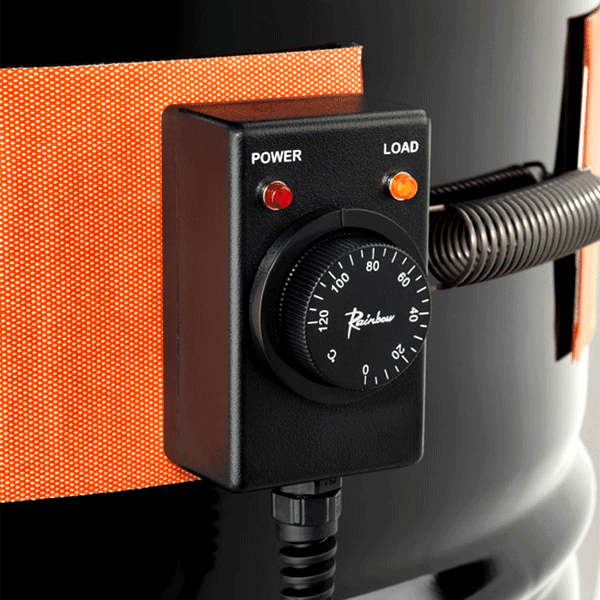

Drum heaterDrum heater thermostat

Technical specification

Double insulated construction for high security
Power supply 230V or 110V
Thermostat 0-120°C (0-90°C and 0-180°C available as an option)
Class IPX1
Optional IP65 with control cabinet 0-200°C (use link above)
Moister and chemical resistant
Two meter supply cable
NOTE! The drum heater must never overlap or run when not mounted on the steel drum

Standard range

Part no.DimensionPowerSupplyDiameter of drumDrum size
30-HSSD25800 x 125mm300W230Vø271 till ø274mm25 liter
30-HSSD50940 x 125mm500W230Vø315 till ø318mm50 liter
30-HSSD105-11300 x 125mm800W230Vø430 till ø433mm105 liter
30-HSSD105-21300 x 125mm800W110Vø430 till ø433mm105 liter
30-HSSD200-11665 x 125mm1000W230Vø570mm200 liter
30-HSSD200-21665 x 180mm1000W230Vø570mm200 liter
30-HSSD200-31665 x 180mm1000W110Vø570mm200 liter
30-HSSD200-41665 x 180mm1500W230Vø570mm200 liter

Other related products

You may also be interested in

Control cabinet PID

IHPs smallest control cabinet is a “stand alone” system that fits a variety of heating applications where the need is one heating zone and one sensor. In our PID controller there is plenty of intelligence that comes in handy when needed for even heating, ramp functionality, maximum adjustable temperature, program steps with different set points or only temperature control that is CE marked and approved.

We supply the control cabinets in three standard versions and you simply select the cabinets according to the type of sensor that fits your process. IHP can also offer some popular options such as quick plug between heater and control cabinet and help program the control cabinet with the parameters that are important in your process.

The control cabinet can advantageously be used in conjunction with all IHPs heaters that need less than 16Ampere.
