Foil heaters polyester 100°C

Polyester foil heaters, also called PET heaters, are very thin and flexible heating elements. Distinctive features are high heat transfer capacity and even heat distribution throughout the heat-emitting surface of the element. A PET heater is suitable for contact heating of flat and cylindrical surfaces but can also be used in for example reflectors.

These extreme flexible foil heaters are manufactured by a proven process called silk screen printing, which allows the heat tracks to be made thin, wide and homogeneous. The foil heaters can be ordered with different types of self-adhesive surfaces to fit in different environments.

Surface mounted sensors, thermocouples, thermostats and fuses are usually used for control and regulation.

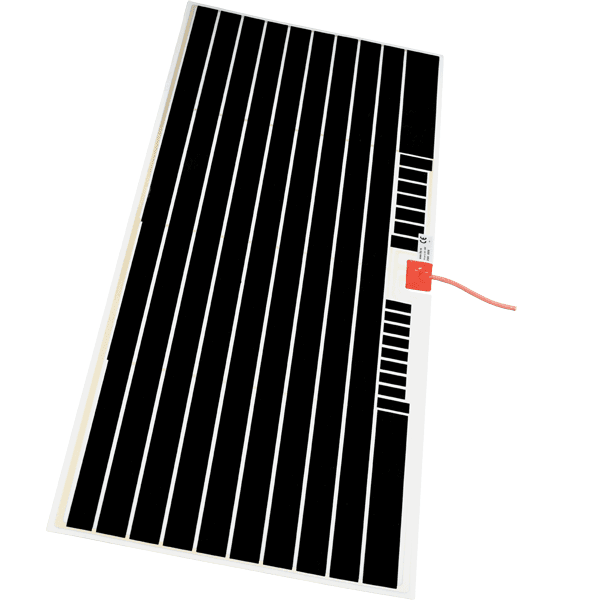

Flexible PET heater
Foil heater PETFoil heater polyester

Technical specification

Surface load up to 0,6W/cm² (recommended up to 0,15W/cm²)
Working temperature from -30°C to +90°C continuously and +100°C short-term exposure
Supply adjusts according to your wishes
Largest manufacturing dimensions per unit 1000mm x 600mm (L x W)
Thickness about 0,3mm in standard design

Other related products

You may also be interested in

Control cabinet PID

IHPs smallest control cabinet is a “stand alone” system that fits a variety of heating applications where the need is one heating zone and one sensor. In our PID controller there is plenty of intelligence that comes in handy when needed for even heating, ramp functionality, maximum adjustable temperature, program steps with different set points or only temperature control that is CE marked and approved.

We supply the control cabinets in three standard versions and you simply select the cabinets according to the type of sensor that fits your process. IHP can also offer some popular options such as quick plug between heater and control cabinet and help program the control cabinet with the parameters that are important in your process.

The control cabinet can advantageously be used in conjunction with all IHPs heaters that need less than 16Ampere.

Control cabinet
