Immersion heaters oil

IHP develops immersion heaters for heating and warm keeping of oil and oil-based products. Immersion heaters with the right power distribution, material and control are an effective and precise heating source that requires minimal maintenance. In our design we are taking the characteristics in account and produce an immersion heater that is gentle to the liquid and properly adapted for the process.

IHPs immersion heaters are often provided with one or more sensor pockets and integrated thermocouples. In the connection box we often place thermostats for temperature limitation. Immersion heaters are advantageously connected to our electrical control cabinets which we keep as stock items. We also customize control cabinets according to your wishes and demands.

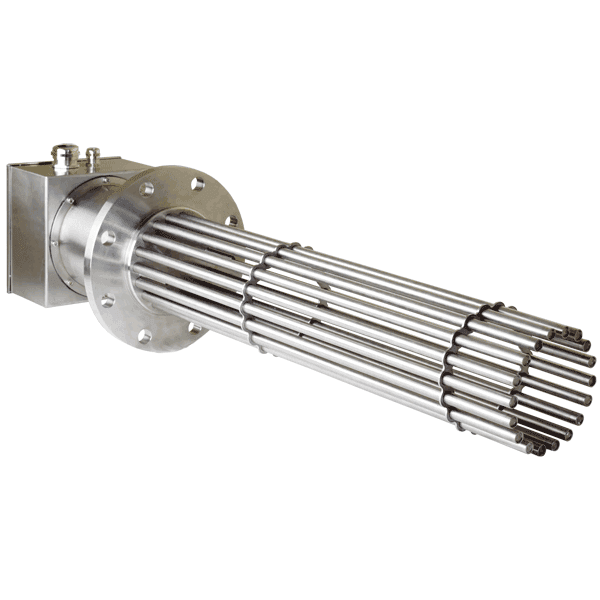

Industrial immersion heaters are produced with tubular heaters that are processed and welded or soldered into the element heads, nipples and flanges. The immersion heaters are normally built into the machines or mounted from the outside for easy access and connection.

Immersion heaters are normally used as heating source for industrial baths, tanks, through flow heaters, boilers and radiators etc.

Immersion heaters oil
Immersion heater hydraulic oilImmersion heaters oil

Technical specification

Surface load up to 10W/cm²
Working temperature up to 800°C
Power supply customized according to demand as well as internal ∆- or Y-connection
Most common gas threads for IHP’s element heads G¾”, G1”, G1 ¼”, G1 ½”, G2”, G2 ½”, M45x2, M77x2
Most common element material copper, stainless steel, acid-resistant stainless steel, 254 SMO, Incoloy® 800, Incoloy® 825, aluminum and titanium

Other related products

You may also be interested in

Control cabinet PID

IHPs smallest control cabinet is a “stand alone” system that fits a variety of heating applications where the need is one heating zone and one sensor. In our PID controller there is plenty of intelligence that comes in handy when needed for even heating, ramp functionality, maximum adjustable temperature, program steps with different set points or only temperature control that is CE marked and approved.

We supply the control cabinets in three standard versions and you simply select the cabinets according to the type of sensor that fits your process. IHP can also offer some popular options such as quick plug between heater and control cabinet and help program the control cabinet with the parameters that are important in your process.

The control cabinet can advantageously be used in conjunction with all IHPs heaters that need less than 16Ampere.

Control cabinet
