Heating tape digital 250°C

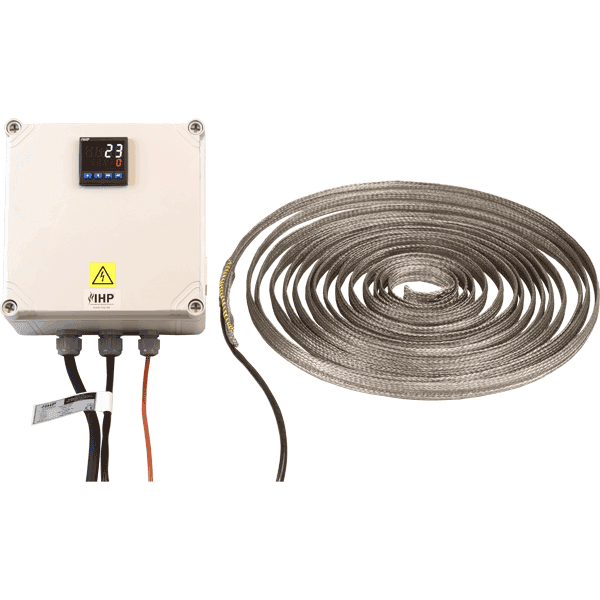

IHP’s heating tape is a flexible heater developed for heating metallic flanges and pipes. Our heating tape is insulated with PTFE. We offer four standard lengths / power classes so that you can easily choose the best fit or customize according to your application.

The temperature control, that is included in the complete heating system, holds amounts of intelligence that come in handy when you need even heating, ramp functionality, adjustable maximum temperature, program steps with ramp and set point or only when you need temperature control that is CE marked and approved.

IHP can also help with installation and preventive maintenance.

Related products
Heating tape digital 450°C
Straight Coil Heater 750°C
Mineral insulated heating cable 1000°C

Downloads
Heating cable IHP
Heating tape IHP

Technical specification

Supply 230V 1-phase 10A
Temperature range 0-250°C
Heating tape dimensions 7x3mm
Installation distance > 10 mm
Protection class I
Heater IP64, control cabinet IP54
For indoor use
Cold cable connecting heating tape to controll box 1m
Integrerad PT100 sensor
The measure point of the sensor needs to be under / in contact with the heating tape.
Max pressure 6 Bar
Digital programmable regulator
Rubber cable 1,6m with grounded plug type Schuko
RCD not included (IHP assumes that the 230V socket is protected by RCD)
CE manual

Standard range

Article numberDimensionPowerSupplyLoad/m
90-150000151500mm~170W230V113 W/m
90-150000303000mm~330W230V110 W/m
90-150000454500mm~400W230V89 W/m
90-1500010010000mm~925W230V92 W/m
