Straight Coil Heater 750°C

Straight coil heaters are developed for small dimension metallic pipe heating. IHP’s Straight coil heaters are manufactured in stainless steel. We offer several different power classes so that you can choose the unit that suits your pipe best. By equipping the heater with an internal thermocouple, we create a heater with excellent temperature control, which makes a higher life expectancy in the heating product.

You can easily combine the heater with IHPs thermal control unit Control cabinet PID and together they make a complete heating system. The control unit holds amounts of intelligence that come in handy when you need precise heating, ramp functionality, adjustable maximum temperature, program steps with ramp and set point or only when you need temperature control that is CE marked and approved.

The straight coil heater can be mounted under a pipe or be spiralized on the pipe depending on pipe diameter and customized needs. Note that once you have spiralized the heater it will not handle new bends well after the first heating.

IHP can also help with installation and preventive maintenance.

Straight coil heaters

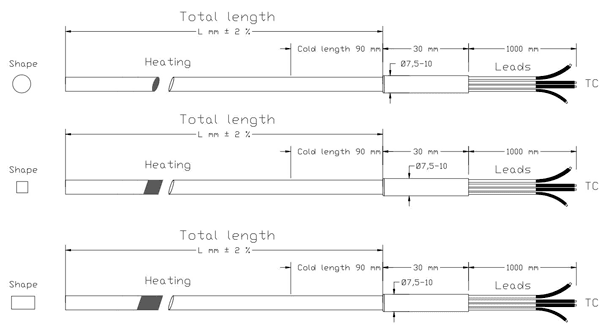

Technical specification

Material: Stainless steel AISI321
Diameter: ø3 mm
PTFE insulated nickel lead wires length: 1000 mm
Leads protection: silicone protection tube
Leakage Current (cold): < 0,5 mA
Wattage tolerance: +5% -10%
Resistance tolerance: +10% -5%
Dielectric Strength: 1000 V
Insulation (cold 1000Vcc): > 10 MΩ
Voltage: 230V
Maximum sheath temperature of heating element: 750°C
Maximum cable temperature: 260°C
Minimum bending radius (internal): 8 mm
Minimum Quantity: 10 pcs per IHP Part

Standard range

Article numberSensor TC J (Fe-CuNi)DimensionsHeated LengthVoltagePower
190-520300200150YesØ3x200mm160mm230V150W
190-520300250175YesØ3x250mm210mm230V175W
190-520300300200YesØ3x300mm260mm230V200W
190-520300350225YesØ3x350mm310mm230V225W
190-520300400250YesØ3x400mm360mm230V250W
190-520300450290YesØ3x450mm410mm230V290W
190-520300500330YesØ3x500mm460mm230V330W
190-520300600400YesØ3x600mm560mm230V400W
190-520300700470YesØ3x700mm660mm230V470W
190-520300800550YesØ3x800mm760mm230V550W
190-520300900620YesØ3x900mm860mm230V620W
190-520301000700YesØ3x1000mm960mm230V700W

Technical specification

Material: Stainless steel AISI321
Section: 4,3 x 2,2 ±0,1mm
PTFE insulated nickel lead wires length: 1000 mm
Leads protection: silicone protection tube
Leakage Current (cold): < 0,5 mA
Wattage tolerance: +5% -10%
Resistance tolerance: +10% -5%
Dielectric Strength: 1000 V
Insulation (cold 1000Vcc): > 10 MΩ
Voltage: 230V
Maximum sheath temperature of heating element: 750°C
Maximum cable temperature: 260°C
Minimum bending radius (internal): 12 mm
Minimum Quantity: 10 pcs per IHP Part

Standard range

Article numberSensor TC J (Fe-CuNi)Length (L)Heated LengthVoltagePower
190-520220250200Yes250mm210mm230V200W
190-520220300225Yes300mm260mm230V225W
190-520220350250Yes350mm310mm230V250W
190-520220400290Yes400mm360mm230V290W
190-520220450330Yes450mm410mm230V330W
190-520220500400Yes500mm460mm230V400W
190-520220600470Yes600mm560mm230V470W
190-520220600550Yes700mm660mm230V550W
190-520220800620Yes800mm760mm230V620W
190-520220900700Yes900mm860mm230V700W
190-520221000800Yes1000mm960mm230V800W
190-520221200950Yes1200mm1160mm230V950W
190-520221401100Yes1400mm1360mm230V1100W
190-520221601200Yes1600mm1560mm230V1200W

Technical specification

Material: Stainless steel AISI321
Section: 6,0 x 4,0 ±0,15mm
PTFE insulated nickel lead wires length: 1000 mm
Leads protection: silicone protection tube
Leakage Current (cold): < 0,5 mA
Wattage tolerance: +5% -10%
Resistance tolerance: +10% -5%
Dielectric Strength: 1000 V
Insulation (cold 1000Vcc): > 10 MΩ
Voltage: 230V
Maximum sheath temperature of heating element: 750°C
Maximum cable temperature: 260°C
Minimum bending radius (internal): 24 mm
Minimum Quantity: 10 pcs per IHP Part

Standard range

Article numberSensor TC J (Fe-CuNi)Length (L)Heated LengthVoltagePower
190-520640800800Yes800mm760mm230V800W
190-520641001000Yes1000mm960mm230V1000W
190-520641251200Yes1250mm1210mm230V1200W
190-520641501400Yes1500mm1460mm230V1400W
190-520641751600Yes1750mm1710mm230V1600W
190-520642001800Yes2000mm1860mm230V1800W
190-520642252000Yes2250mm2210mm230V2000W
190-520642502200Yes2500mm2460mm230V2200W
